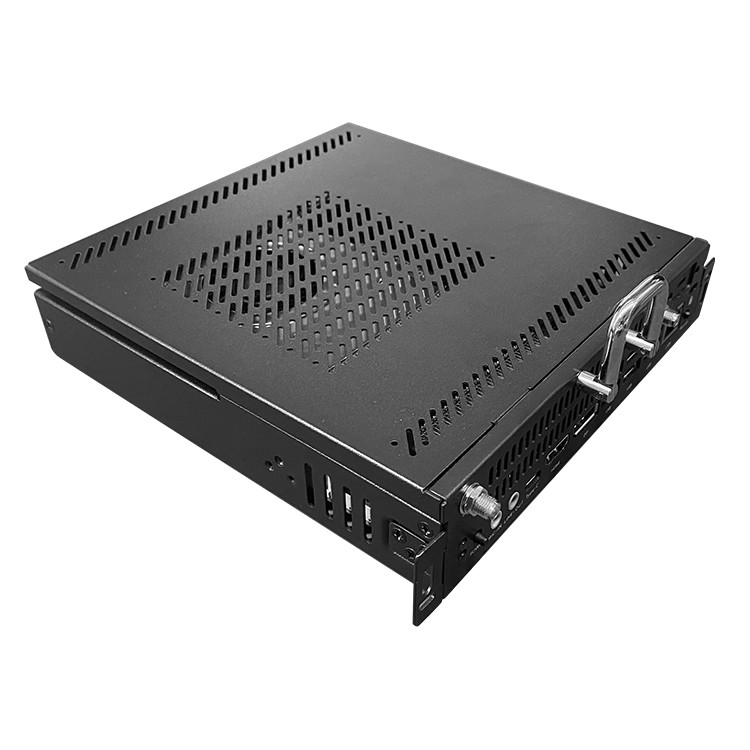

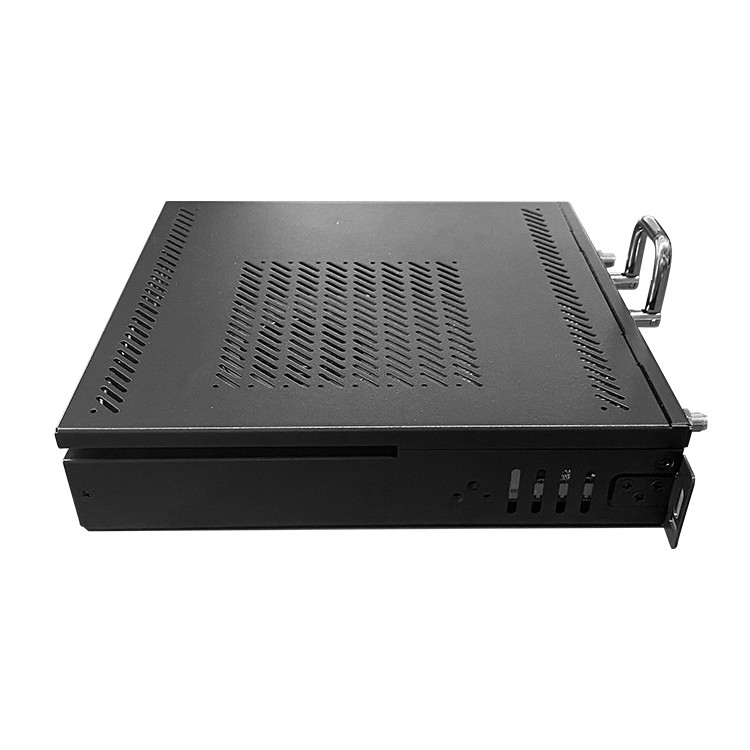

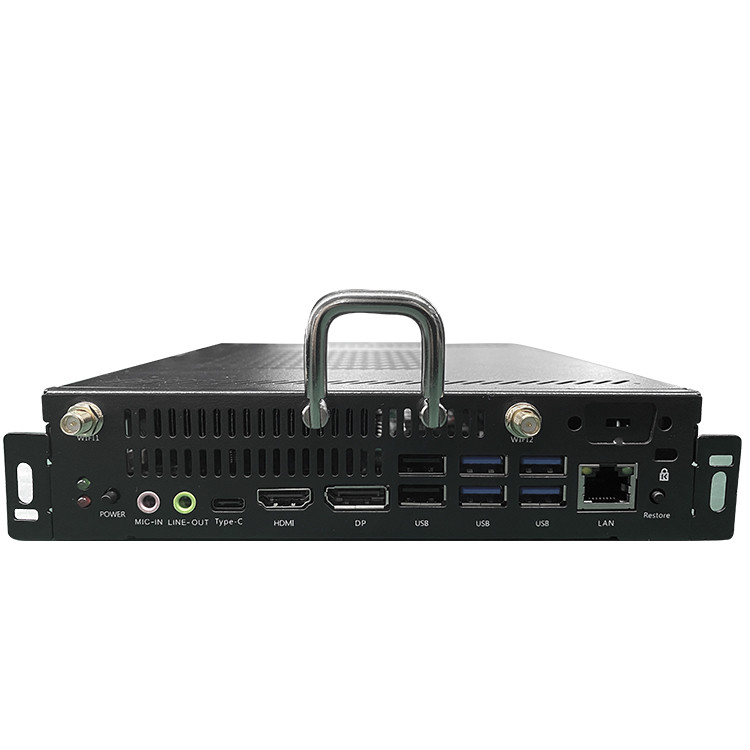

I3 I5 I7 OPS Mini PC For Interactive Panel Wireless Presentation
| Place of Origin | China |
|---|---|
| Brand Name | HDFocus |
| Certification | CE,RHOS,FCC,HDMI |
| Model Number | HD-OPS01 |
| Minimum Order Quantity | 1 |
| Price | $210.00 - $540.00/ |
| Packaging Details | Plastic protective film, carton,wooden box |
| Delivery Time | 5-15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Intel CPU | Support Coffee Lake 8th Generation,9th Generation FCLGA1151 Socket Core I3,i5,i7,i9 CPUs. | Chipset | Intel H310 Chipset |
|---|---|---|---|
| Power Supply | DC Port:5.5*2.5MM;Support DC 12V/19V; | Memory | 2*NB-DDR4 2133/2400MHz Memory Slots,Max. 32GB RAM. |
| Ethernet | 1*Realtek 8111H 10/100/1000Mbps RJ45 LAN Interface; Support Wake-on-LAN And PXE Diskless Boot Function. | Display | Integrated Intel UHD Graphics 630 In CPU;Support 1080P,2K,FHD,4K,UHD Display. |
| USB | 3*USB3.1 Interfaces,3*USB2.0 Interfaces | Sound | Integrated Realtek ALC662 HD Digital Audio Decoder,6-channel High-fidelity Audio Controller. |
| Hard Disk | 128GSSD | Switch | 1*F_PANEL Pin,1*PWR-BUTN Button,1*RST-BTN Button1*AT-ATX Pin |
| Operating Environment | Operating Temperature:-20℃~60℃; Working Humidity:5%~95% Relative Humidity, No Condensation. | BIOS | AMI BIOS;Support Power On,timing Switch,remote Switch,intelligently Identify Devices. |
| Watch Dog | Watch Dog Programming Supports Hardware Reset Function (256 Levels, 0~255 Seconds). | Operating System | Support Windows 10 64bit,Linux,etc. |
| High Light | OPS Mini PC I7,OPS Mini PC I5,OPS Mini PC I3 |
||
Product Description
OPS Core i3 i5 i7 Mini PC Wireless Presentation for interactive panel
Features
- Support coffee lake-s 8th and 9th Gen Intel ® CoRE ™ I3, i5, i7 processor
- Display:HDMI DP
- Compatible with ops-c full series product upgrade and switching
- Support DDR4 2400 / 2666mhz memory, and the maximum support is 16GB
- BIOS supports AMI 64Mbit diskless startup, power on and timed startup
- BIOS supports one key backup and restore system function
- Hardware supports one key restore system function
1) The motherboard supports 1151 pins I3, i5, i7 and i9 of coffee Lake generation 8 and generation 9 platforms;
2) The motherboard supports external HDMI / daughter card DP, DP and daughter card HDMI, and supports single display, double display replication, double display expansion and single display under DOS;
3) External HDMI interface of motherboard supports 4K resolution 4096 / 3840* 2160@30Hz ；
4) External DP interface of motherboard supports 4K resolution 4096 / 3840* 2160@60Hz ；
5) The HDMI interface of the motherboard and the DP interface of the daughter card are one of two, and the default HDMI output of the motherboard and the DP output of the daughter card need to be changed;
6) Ops terminal card HDMI 2.0 supports 4K resolution 4096 / 3840* 2160@60Hz ；
7) Ops terminal card DP interface supports 4K resolution 4096 / 3840* 2160@60Hz ；
8) The m.2 interface of the motherboard supports m.2 2280 / 2242 standard SSD, supports SATA signal by default, and can change nvme (PCIe) signal;
9) The msata interface of the motherboard only supports SATA signals by default, and USB signals and PCIe signals cannot be changed;
10) The mini PCIe interface of the motherboard coexists with USB signal by default (3G / 4G / Bluetooth module can be supported by default);
11) 3 * usb3.1 GEN1 interface (usb30_2 lower interface is 3.1) and 3 * USB2.0 interface (usb3.0_2 lower interface is
2.0)；
12) The USB interface of the motherboard defaults to s power (not charged after shutdown), and can be changed to a power (charged after shutdown);
13) Motherboard COM1 / 2 supports RS232 by default; The ninth pin output 0V / 5V / 12V can be set through jcom1 / 2 / jump cap, and the default is 0V;
14) The motherboard only supports single gigabit network ports;
